600 kg

DUMPER WITH 600 KG CAPACITY

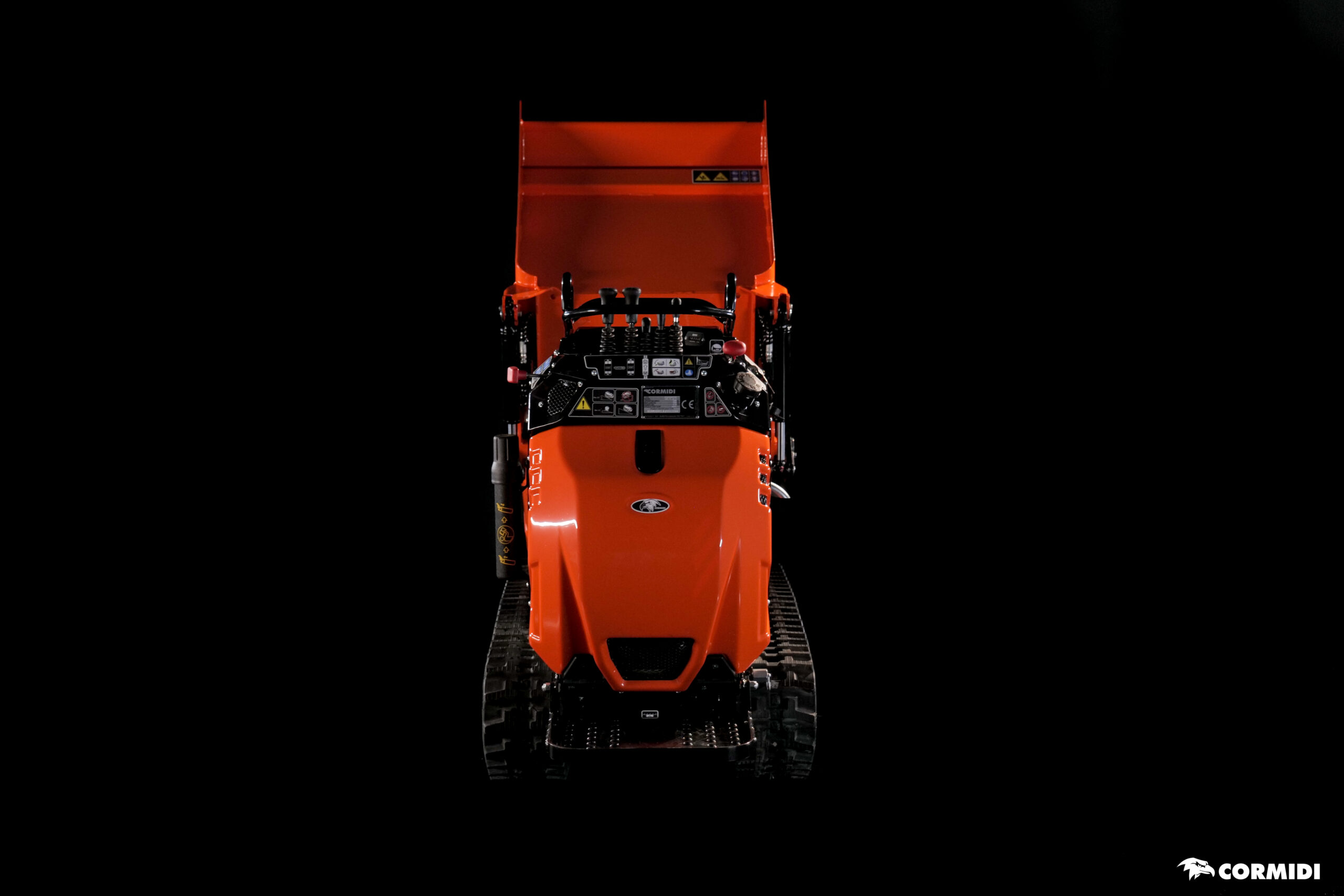

Tracked minidumper

With the 60 series it is possible to safely transport 600kg; incredibly sturdy, beautiful to look at and above all very reliable, it has revolutionised the world of minidumpers with its style. For several years on the market, it was the first to have a particular and attractive line, to the extent that it began to resemble a car due to its sophisticated design. The shape of this tracked conveyor is just one of its peculiarities. In fact beneath its appearance is hidden a chassis that is compact and highly durable, an efficiently designed undercarriage for the channelling of sludge and soil materials out of the machine. The lifter body is a compact area of the machine that allows passage inside the doors of a house.

High discharge lifter body (Hi Tip)

The minidumper of the 60 series is also produced in the hi-tip model, i.e. the machine is equipped with a body that has a special mechanism allowing vertical lifting of the same in order to be able to discharge the contents into a raised body similar to that of a truck.

Oscillating rollers

The minidumper of the 60 series is also produced in the hi-tip model, i.e. the machine is equipped with a body that has a special mechanism allowing vertical lifting of the same in order to be able to discharge the contents into a raised body similar to that of a truck.

Select the version that best suits your needs

  • AC (ACDHE-ACBHE)

  • AGRI (BEA-DEA)

  • HI-TIP (ACBE-DEAC)

  • HI-TIP (DHE-BHE)

  • RI (DE-BE)

Technical specifications

Engine

BenzinaHonda Gx 270 9 hp
DieselYanmar LA 70 7.5 hp
ElectricLithium batteries

Transmission

Typehydrostatic
Hydraulic pumpn. 3 with gears

Crawler undercarriage

Track width180 mm

Hydraulic system

Hydraulic pumpn. 3 with gears
Standard flow1×16 l/min
Max pressure170 bar

Performance and dimensions

Speed approx 0-3.6 km/h
Weight
 C60 (Petrol) BE463 kg
 C60 (Petrol) BHE552 kg
 C60 (Petrol) ACBE506 kg
 C60 (Petrol) ACBHE628 kg
 C60 (Diesel) DE476 kg
 C60 (Diesel) DHE567 kg
 C60 (Diesel) DEAC520 kg
 C60 (Diesel) ACDHE638 kg
Operational capacity 600 kg
Caisson capacity 0,25
Parking brake Yes
