1200 kg

MINILOADER WITH 1200 KG CAPACITY

A high-performance machine

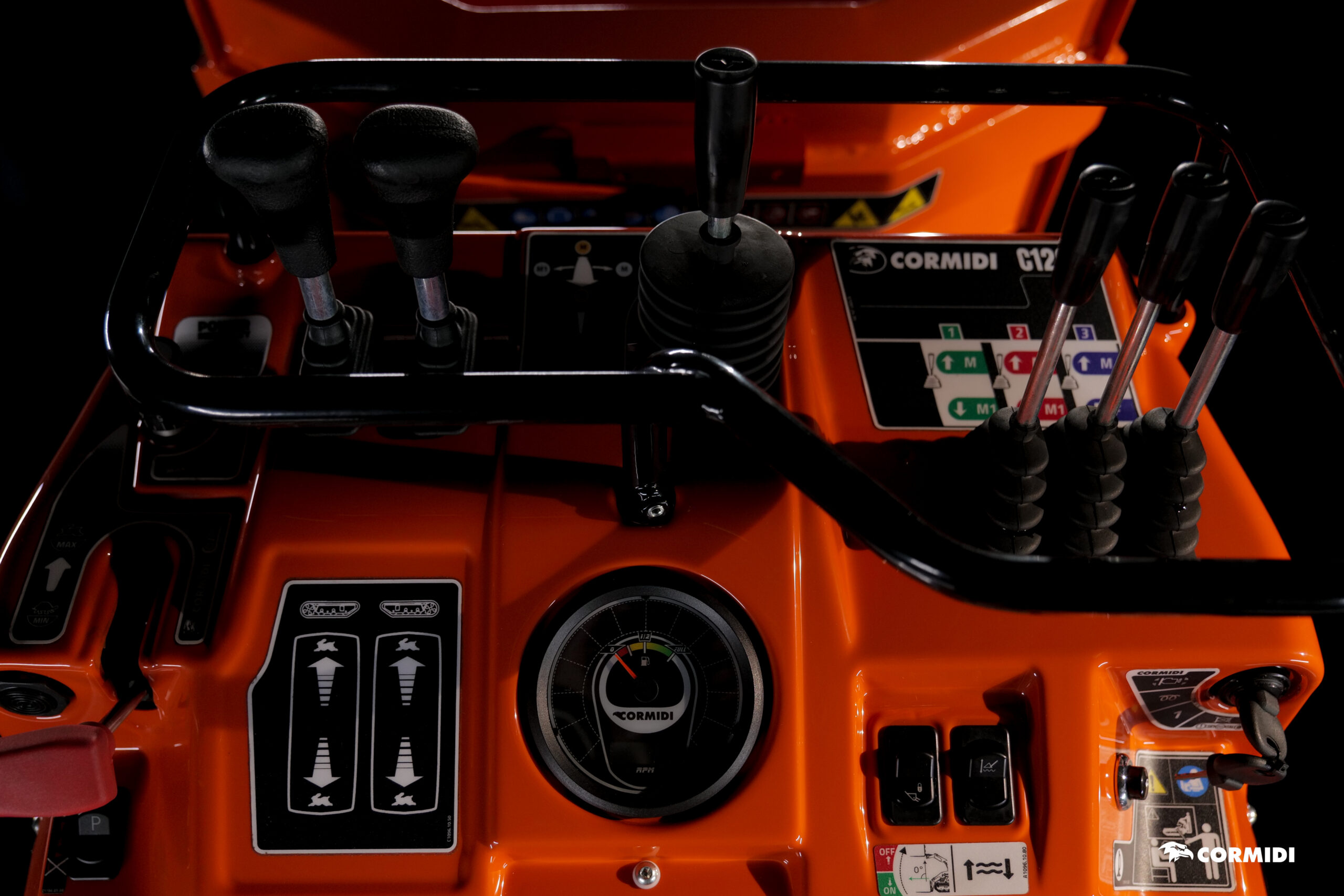

Designed, developed and built entirely in Italy in Cormidi factory!The exclusive design of the traction control is intuitive, easy to use: it is a concentrate of technology and innovation without rivals!

Attractive design

Style is just one of the many factors that go into our machines; ergonomy, elegance, practicality and functionality, together with robustness, power and reliability make the Cormidi miniloader the most complete machine there is!

Suited to your work

It is designed to handle a variety of gardening and irrigation tasks, such as tree maintenance and sod transport. With a wide variety of accessories available this mini-roller is ready to take on all your jobs.

Technical specifications

Engine

DieselKubota D1105 24,8 hp  STAGE V TIER 4

Transmission

Typehydrostatic
Hydraulic pump2 variable displacement piston pumps 93 lt/min 365bar

Crawler undercarriage

Track width200 mm
Oscillating rollersYes
Hydraulic system Spec 1 – 2
Hydraulic pumpGear pump
Standard flow (Spec 1 – Spec 2)1×26 l/min 200 bar
Hydraulic flow with high flow  Spec 3
Hydraulic pumpPiston pumps with variable flow rate
Standard flow (Spec 1 – Spec 2)2×27=54 l/min 280 bar
Additional hydraulic outputs
Spec 1n° 2 double effect
Spec 2n° 5 double effect
Spec 3n° 5 double effect

Performance

Speed  6,9 km/h
Weight865 kg
Parking brakeYes
Power regulatorYes

Dimensions

Operating capacity1200 kg
Equipment weight425 kg
Machine weight795 kg
Total weight1220 kg
Tipping load without counterweight1123 kg
Tipping load without counterweight SAE 50%561,5 kg
Tipping load without counterweight SAE 35%393 kg
